MAX1090H510 Waterproof Case (Hinged Lid)

The MAX1090H510 gives you 395 litres in a case one person can still wheel. Internal depth is 510mm, and almost all of it is in the base at 440mm, with a shallow 70mm lid on top. If you are packing tall gear that stands upright, this is the size that takes it.

It weighs 23kg empty and runs on double wheels with a large fold-down pull handle. Bottom-side handles let two people lift it once loaded, which you will want at this capacity.

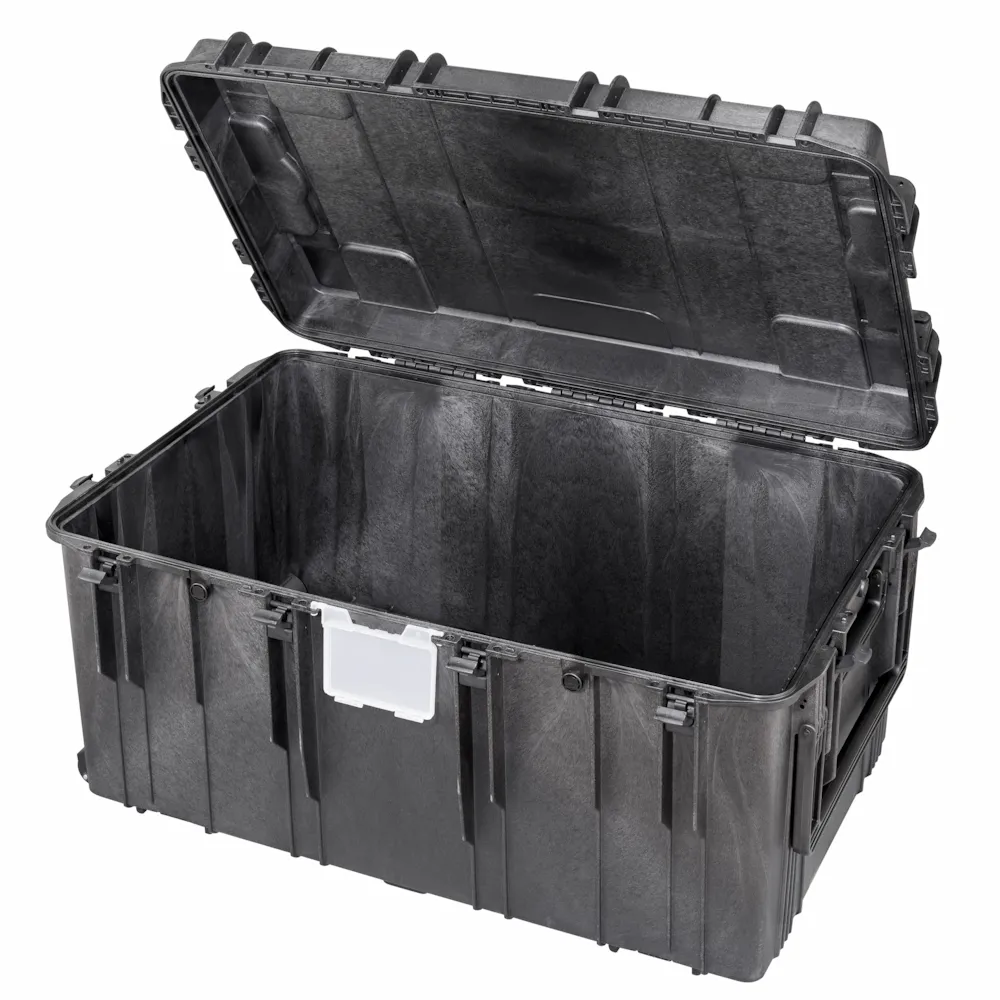

This is the hinged version, closing on 8 double-throw latches. The lid stays attached on full-length hinges and opens to 90 degrees, so there is nothing to set down and lose, and one person can open and shut it unassisted.

Interior

Supplied empty. With 440mm of clear base depth this is the size most people fit out rather than fill loose, and we cut custom foam inserts in our Melbourne workshop from your drawings or from the equipment itself. Send us the case model and what is going in it.

Certifications

IP67. ATA 300 Category 1 for air freight. STANAG 4280 and DEF STAN 81-41. MIL-STD 810H. UN4H2 for shipping lithium-ion batteries as dangerous goods. Datasheet is available for download below.

datasheet_MAX1090H510

Features

• Watertight seal around the lid
• Four automatic pressure release valves
• 8 easy-open double-throw latches
• Full-length hinges, lid opens to 90 degrees
• Double wheels with fold-down pull handle
• Bottom-side handles for two-person carrying
• Load-tested soft-grip handle
• Two padlock points
• Name tag space on the front
• Stackable interlocking system
• Corrosion-free fibreglass-reinforced nylon pins

The 1178 x 780mm external footprint sits inside a 1200 x 800mm Euro pallet with room to strap. On a standard Australian 1165 x 1165mm pallet it overhangs the long side by 13mm, so check with your carrier before palletising a run of them.
